Last Updated: September 12, 2026
What You'll Need Before You Start
Preventing cooling failures in server rooms starts with a short equipment and information list, not a major purchase. Gather these first:
- A handheld anemometer or thermal probe for spot checks
- A floor plan marked with rack positions and CRAC unit locations
- Access to your monitoring platform's historical temperature and humidity logs
- Spare blanking panels and cable ties
- The contact details for your cooling maintenance provider
One number matters most before you begin: your current heat load. Everything downstream, from airflow management to redundancy planning, depends on knowing how much heat your room actually produces. Treske Pty Limited sees this gap constantly on site audits, where rooms designed for one density now run at three times that.
Step 1: Map Airflow Pathways and Remove Obstructions
Cool air must reach every server front, and hot air must leave the rear without recirculating. Trace both paths before adjusting anything.
Start at the perforated floor tiles. Lift a few and check for crushed ducts, missing grommets, or tiles swapped for solid panels. A single blocked tile in a high-density row can starve three racks downstream.
Hot Aisle and Cold Aisle Containment Basics
Hot aisle and cold aisle containment physically separates supply air from return air so the two never mix. Racks face each other in alternating rows: fronts form the cold aisle, rears form the hot aisle.
Without containment, supply air short-circuits back to the CRAC return, and the room runs warmer than sensors suggest. A common mistake is leaving the overhead gap above racks open, defeating most of the benefit. Seal the top of the aisle as well as the ends.

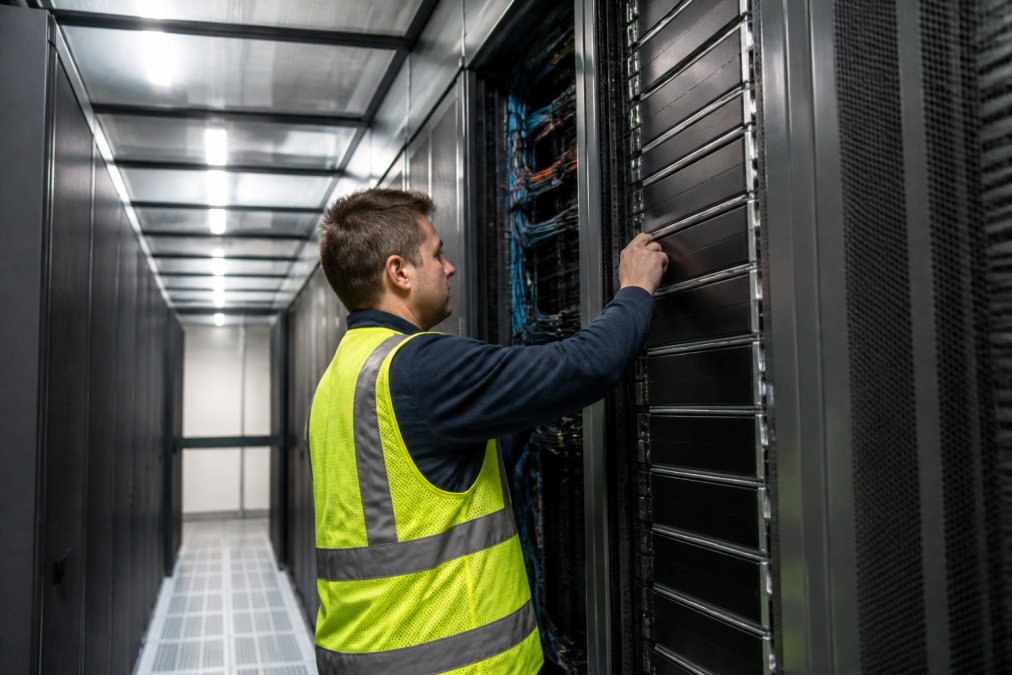

Cable Management and Blanking Panels
Loose cables across a rack rear block exhaust airflow and push hot air back toward the intake. Route cables overhead or under the floor, using vertical managers where overhead routing isn't possible.
Blanking panels fill empty rack units so hot exhaust can't cycle back through the front. They cost little and deliver one of the fastest returns of any airflow fix. Fit them across every unused U position, including gaps above and below active equipment.
Step 2: Server Room Temperature Monitoring Best Practices
Server room temperature monitoring best practices come down to sensor placement and alert thresholds, not sensor count. Twenty badly placed sensors are worse than five in the right spots, because they create false confidence.
Measure at rack intake height, roughly the middle of the rack, where servers draw air. Ceiling-height ambient temperature tells you almost nothing about what equipment experiences.
Where to Place Environmental Sensors
Place sensors in three zones:
- Cold aisle intakes at the bottom, middle, and top of at least one rack per row
- Hot aisle returns, to confirm exhaust is leaving the room
- Near the CRAC units, to catch a unit that's running but not cooling
Avoid exterior walls or spots directly above doorways, where readings swing with foot traffic and weather.
Remote Management and Real-Time Alerts
Real-time monitoring only helps if someone acts. Set tiered thresholds: a warning at the upper end of normal range, and a critical alert well before shutdown limits.
Remote management platforms let your team see rack-level conditions without entering the room. Treske Pty Limited supplies and integrates monitoring tools including APC / Schneider EcoStruxure IT, which collects temperature, humidity, and UPS data into one dashboard with remote access and predictive maintenance. For multi-site teams, that visibility is often the difference between catching a failing fan and discovering it during an outage.
Step 3: Is Modular Cooling Good for Small Server Rooms?
Yes, modular cooling is often better for small server rooms because it scales with your heat load instead of forcing over-provisioning from day one. But the more useful question for anyone managing a small room, comms closet, or edge site is what actually works with one rack, limited floor space, and no dedicated facilities team.
Most cooling guidance targets halls with dozens of racks and a CRAC plant. The reality for many small business and edge environments is different: a single enclosure in a converted storeroom, a wall-mounted split system, and an IT generalist who also handles the phones.
What Counts as a Small Server Room
It helps to be concrete about scale, because the right answer changes with it:
- Comms closet (under 2 kW total), one or two racks, often wall-mounted or a small floor cabinet. Comfort cooling or a small wall-mounted unit is usually adequate, provided humidity is monitored.
- Small server room (2-10 kW total), a dedicated room with three to eight racks. This is where precision cooling starts to pay for itself, and where modular or close-coupled units make the most sense.
- Edge site (5-15 kW, often one or two racks), a small footprint in a location with no permanent staff. Remote monitoring and remote reset capability matter more here than raw capacity.
If unsure which band you're in, calculate actual heat load first. Nameplate ratings overstate real draw; a diversity factor of 0.6 to 0.8 applied to nameplate is a common starting point, but metered power data is better.
Cooling Options for Small Rooms, Ranked by Fit
Comfort cooling split systems suit very low-density rooms where humidity isn't tightly controlled and downtime is tolerable. They're cheap to install and run, but typically can't hold relative humidity in the band precision equipment prefers, and offer no redundancy, if the unit fails, the room has no cooling. Regular commercial cooling maintenance remains the only way to mitigate these inherent reliability gaps and extend the operational lifespan of such basic hardware.
Wall-mounted precision units are the workhorse for small dedicated rooms. They hold temperature and humidity within tighter tolerances than comfort systems, suit a 3-8 rack room, and can be paired for N+1 redundancy. The trade-off is cost and a condensate path.
Close-coupled and in-row units cool directly next to the heat source, far more efficient in a small room than cooling the whole space. They suit edge sites and small rooms where density is rising but floor space is tight, but need clear space for airflow and service access, often the binding constraint in a converted room.
Modular/expandable systems let you add capacity in defined increments as racks fill, right when density will grow but timing is unpredictable. Planning matters: reserve space and a layout that supports the next module, and size the electrical supply for the eventual total, not just the first module.
| Approach | Best For | Main Trade-Off |
|---|---|---|
| Room-level precision cooling | Large, stable, high-density halls | High upfront cost, poor part-load efficiency |
| Modular/close-coupled cooling | Small and edge rooms, growing sites | Needs space and layout planning |
| Wall-mounted precision units | Dedicated small rooms, 3-8 racks | Condensate path required, moderate cost |
| Comfort cooling split systems | Very low-density comms rooms | Limited humidity control, no redundancy |
The Constraints That Actually Decide It
In small rooms, physical constraints usually decide it, not cooling theory:
- Floor space and service clearance, most units need access for filter changes and servicing. A unit you cannot service is a unit that will fail.
- Condensate drainage, precision units produce condensate. If there is no drain path, you need a condensate pump, and that pump becomes a single point of failure worth monitoring.
- Electrical capacity, adding cooling often means adding a circuit. Check the board capacity before you buy the unit, not after.
- Noise, a small room next to an office has acoustic limits that rule out some unit types.
- Remote access, for edge sites with no permanent staff, remote monitoring and remote reset are not optional extras. They are the difference between a truck roll and a phone call.
For edge sites and small rooms, pairing modular or close-coupled cooling with a monitoring layer such as Ekkosense Datacenter Optimization gives 3D visualisation of thermal risk and capacity planning data, so you can see when to add the next module rather than guessing. On a single-rack edge site, even a basic SNMP-capable environmental monitor with SMS alerting beats a wall thermometer nobody reads.
Step 4: Preventing Hot Spots in Server Racks
Preventing hot spots in server racks means finding them before they become failures. A hot spot is any location where intake air exceeds surrounding cold aisle temperature by a meaningful margin, typically at the top of a rack or beside a row gap.
Check the top U positions first, hot air rises, and upper units in a tall rack suffer first. Then check racks adjacent to any row gap, where cold air escapes sideways instead of through servers.
Heat Load Calculations and Rack Layout
Calculate heat load in kilowatts per rack, not per room. Sum each rack's nameplate ratings, then apply a realistic diversity factor, since not every server draws full power at once.
Layout follows the numbers. High-density racks belong in rows with dedicated cooling, not scattered among low-density units. Grouping similar loads makes airflow predictable and containment simpler.
Treske Pty Limited's rack and stack and electrical installation services cover rack layout and power distribution as one coordinated job, because cooling and power decisions constrain each other. A rack drawing more power than its row was designed for runs hot no matter how good the containment.
Step 5: Preventative Maintenance and Redundancy Planning
Redundancy means no single failure can take the room down: at least two cooling paths, separate power feeds, and a maintenance schedule that catches degradation before failure.
Preventative maintenance should cover filters, fan belts, condensate drains, refrigerant charge, and control calibration. Vibration monitoring on compressors and fans catches bearing wear early, exactly the fault that becomes an unplanned 3am outage.
Humidity Control and Static Discharge Prevention
Static discharge prevention depends on keeping relative humidity in a stable band. Too dry and static builds up, risking component damage; too humid and you risk condensation on cold surfaces.
Comfort cooling typically can't hold humidity tightly enough for a server room. Precision cooling controls both temperature and humidity, which is why it remains the standard for rooms with real equipment density.
Emergency Response Protocols for HVAC Failure
Emergency response protocols for HVAC failure should be written, rehearsed, and posted. When cooling stops, you have minutes, not hours, before intake temperatures climb.
A workable protocol includes:
- Confirm the failure and identify the affected zone
- Shed non-critical load immediately, starting with batch and test systems
- Deploy portable cooling or fans to maintain airflow across critical racks
- Raise a maintenance call with a defined response time
- Log intake temperatures every few minutes until cooling is restored
The step most teams skip is load shedding. Shutting down non-essential equipment buys time no portable fan can match.
Preventing cooling failures in server rooms is mostly about airflow discipline and early detection. Containment, blanking panels, correct sensor placement, and a rehearsed failure plan cover more risk than any single equipment upgrade.
Common Mistakes to Avoid
The most common mistake is monitoring ambient room temperature instead of rack intake temperature. The room can read a comfortable 22°C while the top of a rack sits well above its safe intake range (ashrae.org).
Other frequent errors:
- Skipping blanking panels because they seem cosmetic
- Running cables across the rear of racks and calling it tidy
- Setting alert thresholds so high that they only trigger after damage
- Buying cooling capacity for a peak load that never arrives
- Treating maintenance as optional until something breaks
Each is cheap to fix and expensive to ignore. The pattern behind all five: treating cooling as a one-time installation rather than an ongoing operational discipline.
ASHRAE technical guidance on data centre environmental conditions
Uptime Institute research on data centre outage causes
Cooling failures rarely announce themselves. They build quietly through blocked tiles, missing panels, and alerts nobody actioned, then surface as an outage at the worst moment. Treske Pty Limited designs, supplies, and installs power, cooling, and rack enclosure systems with an agnostic approach, so the solution fits your room rather than a vendor's product line. Our preventative maintenance and site acceptance testing keep that infrastructure verified long after commissioning. Get started with Treske Pty Limited and build a server room that holds its temperature when it matters.
Frequently Asked Questions
What are the most common causes of server room cooling failure?
The most frequent causes are HVAC equipment breakdown, blocked airflow from misplaced cabling or missing blanking panels, failed humidity control leading to static discharge, and neglected filter or fan maintenance. Power interruptions to cooling units, chiller faults, and insufficient redundancy also contribute. Regular preventative maintenance and real-time environmental monitoring catch most of these before they cause thermal runaway and equipment losses.
How often should server room cooling systems be serviced?
Most precision cooling units need servicing every three to six months, including filter replacement, fan inspection, refrigerant checks, and condensate drain clearing. Chillers and external condensers may need quarterly attention depending on local conditions. Pair scheduled servicing with continuous sensor monitoring so you catch performance drift between visits rather than discovering it during a heat event.
Is modular cooling good for small server rooms?
Yes, modular cooling suits small server rooms and edge sites well. In-row or rack-mounted units scale with your heat load, so you add capacity as racks fill rather than over-specifying upfront. They also provide redundancy without duplicating an entire central plant. The trade-off is slightly higher per-kilowatt cost, but the flexibility and targeted airflow usually outweigh that for smaller footprints.
How hot is too hot for a server room?
ASHRAE recommends keeping intake air between 18°C and 27°C for most enterprise equipment, with humidity between 8% and 60% relative humidity. Sustained ambient temperatures above 32°C accelerate hardware degradation and raise failure rates. Set alert thresholds well below the upper limit so you have time to respond before thermal runaway begins.
