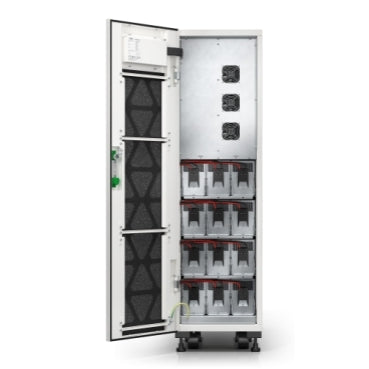

APC / Schneider Electric Easy UPS 3S 20 kVA 400 V 3:3 UPS for internal batteries
APC / Schneider Electric Easy UPS 3S 20 kVA 400 V 3:3 UPS for internal batteries is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
APC / Schneider Electric Easy UPS 3S 20 kVA 400 V 3:3 UPS for inter...
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | E3SUPS20K3IB |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | Schneider Electric |
| Product Line | Easy UPS 3S |
| Product Model | E3SUPS20K3IB |
| Product Name | Easy UPS 3S E3SUPS20K3IB 20kVA Tower UPS |
| Marketing Information | High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Transfer Time | 0 ns |
| Phase | Three Phase |
| Application/Usage | Data Center |
Power Description
| Load Capacity (VA) | 20 kVA |
| Input Voltage |
|
| Input Voltage Range | 304 V AC - 477 V AC |
| Output Voltage |
|
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
Battery Information
| DC System Voltage | 240 V DC |
| Battery Characteristics | Sealed Lead Acid (SLA) |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -25°C - 55°C |
| Maximum Storage Elevation | 15 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 60 dB |
| Thermal Dissipation | 870 BTU/h |
Physical Characteristics
| Form Factor | Tower |
| Height | 1400 mm |
| Width | 380 mm |
| Depth | 907 mm |
| Weight (Approximate) | 150 kg |
Miscellaneous
| Environmentally Friendly | Yes |
