APC by Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5x8
APC by Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5x8 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
APC by Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for intern...
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | E3MUPS80KHBS |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | APC by Schneider Electric |
| Product Line | Easy UPS 3M |

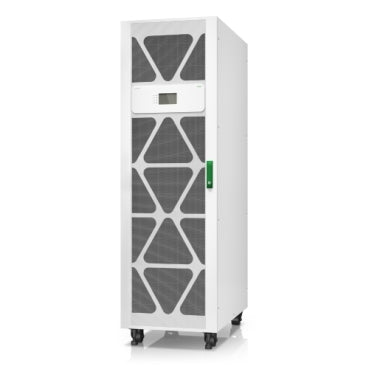

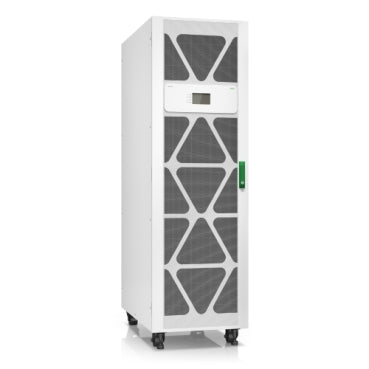

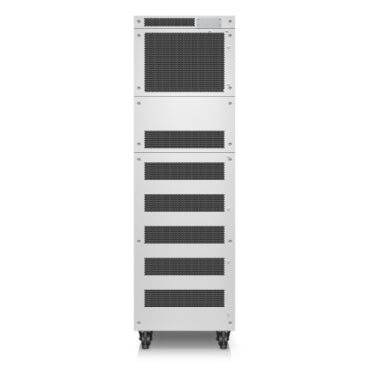

| Product Name | Easy UPS 3M 80kVA Tower UPS |
| Marketing Information |
60-200kVA, 400V easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 3 phase UPS for small and medium data centers and other business critical applications. The Schneider Electric Easy UPS 3M, part of the 3 phase Easy UPS series, is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60-200kVA 3 phase UPS ideal for small and medium data centers and other business critical applications. Easy UPS 3M supplies power stability and long-lasting performance with advanced product features, robust electrical specifications and compact design to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of use, the Schneider Electric Easy UPS 3M is the easy choice for your business continuity in the data center or electrical room. Start-up service is included to optimize your system's performance, quality, and safety. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Overload Protection | Yes |
| Phase | Three Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 80 kVA |
| Input Voltage |
|
| Input Voltage Range | 342 V AC - 477 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
Interfaces/Ports
| EPO Port | Yes |
Battery Information
| DC System Voltage | 240 V DC |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 450 m |
| Maximum Storage Elevation | 4.50 km |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Thermal Dissipation | 14850 BTU/h |
Physical Characteristics
| Form Factor | Tower |
| Height | 1970 mm |
| Width | 600 mm |
| Depth | 1000 mm |
| Weight (Approximate) | 339 kg |
