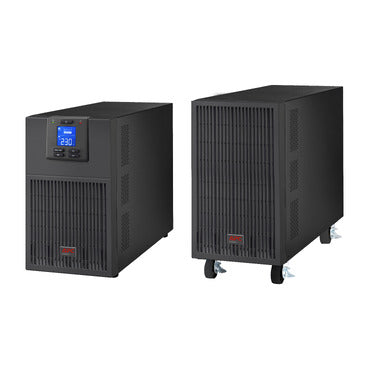

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime
APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+...
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRV10KIL |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | APC by Schneider Electric |
| Product Line | Easy UPS |
| Product Series | SRV |
| Product Model | SRV10KIL |
| Product Name | Easy UPS SRV10KIL 10KVA Tower UPS |
| Marketing Information |
Easy UPS On-Line High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | Hardwire 3-wire |
| Receptacle Type | Terminal Block |
| Receptacle Detail | 1 x Terminal Block |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 600 J |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | Multifunction LCD |
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
Battery Information
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free/Sealed/Water-proof |
| Battery Chemistry | Lead Acid |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
Physical Characteristics
| Form Factor | Tower |
| Height | 336 mm |
| Width | 190 mm |
| Depth | 447 mm |
| Weight (Approximate) | 76.50 kg |
Miscellaneous
| Environmentally Friendly | Yes |
