Why Data Center Power Redundancy Matters
Data center power redundancy solutions combine UPS units, backup generators, automatic transfer switches, and distribution paths to eliminate single points of failure. At Treske Pty Limited, we design and install these systems for hospitals, government agencies, and enterprise facilities across Australia and New Zealand, where even seconds of downtime carry significant operational and financial consequences.
Understanding Redundancy Levels: N, N+1, and 2N
Redundancy levels are expressed as a ratio of available capacity to required capacity and directly determine your facility's fault tolerance. Power redundancy refers to the duplication of critical components so that no single failure interrupts the power supply to your servers.
- N configuration provides exactly enough capacity to support the critical load, with no spare. A single component failure causes downtime.
- N+1 configuration adds one extra module or UPS unit beyond the required capacity. If one unit fails, the remaining units carry the load without interruption. This is the most common baseline for modern data centers.
- 2N redundancy duplicates the entire power path, including UPS systems, switchgear, and distribution. Each path can independently support the full load, offering the highest level of fault tolerance.
Tier Classification and System Availability
Tier classification provides a standardised framework for measuring resilience. The Uptime Institute's Tier Standard defines four levels, from Tier I (basic, no redundancy) to Tier IV (2N infrastructure with concurrent maintainability). A Tier III facility allows any component to be shut down for maintenance without disrupting operations (uptimeinstitute.com).
Higher tiers demand more sophisticated power distribution, more backup power sources, and stricter commissioning protocols. Your target tier should be driven by the application's criticality, not by a desire to match industry peers.
Critical Components of a Redundant Power Architecture
A resilient power path is a chain of interconnected components, each specified and maintained to the same standard. The primary elements include the utility feed, standby generators, automatic transfer switches, UPS modules, and power distribution units (PDUs).
UPS Systems and Battery Backup
The uninterruptible power supply (UPS) provides instantaneous battery backup during the gap between a utility failure and generator startup. A dual-conversion online UPS continuously rectifies incoming AC power to DC and then inverts it back to clean AC, isolating connected equipment from power quality issues like surges, sags, and frequency variations (ieee.org).
For high-availability environments, modular UPS systems offer a distinct advantage. The Centiel CumulusPower™ series, available from Treske, uses a Distributed Active-Redundant Architecture (DARA) where each module operates independently with no single point of failure, allowing you to scale capacity incrementally and perform maintenance on one module while others continue protecting the load.
Automatic Transfer Switches and Intelligent PDUs
An automatic transfer switch (ATS) monitors the primary power source and seamlessly switches the load to a backup source if the primary fails. Rack-level ATS units, such as the Eaton ATS, provide an affordable way to add power redundancy to dual-corded networking equipment without the expense of fully redundant power supplies.
Downstream of the UPS, intelligent PDUs distribute power to individual racks while providing granular monitoring of voltage, current, and power consumption, supporting load balancing and capacity planning to avoid overloaded circuits that can trip breakers and cause localised outages.
Comparing Power Redundancy Solutions
Selecting the right power redundancy solution requires matching the architecture to your facility's size, criticality, and budget. The table below compares the primary approaches we evaluate with clients at Treske.
| Solution | Best For | Key Advantage | Typical Limitation |
|---|---|---|---|
| Standalone UPS (N) | Small server rooms, edge sites | Lowest initial cost | No fault tolerance |
| Modular UPS (N+1) | Enterprise data centers | Scalable, hot-swappable modules | Higher upfront than single unit |
| Dual UPS with ATS (2N) | Hospitals, core financial systems | Full path redundancy | Doubles capital and footprint |
| Generator + UPS combo | Facilities needing long runtime | Extended outage protection | Requires fuel storage and testing |
For most mid-to-large enterprise facilities, we recommend an N+1 modular UPS configuration paired with a standby generator and an ATS. The Eaton 93PM series exemplifies this approach, offering a scalable modular platform with high efficiency and redundant power modules.
A Cost-Benefit Framework for Redundancy Tiers
To build a business case for moving from N+1 to 2N, quantify the cost of downtime for your specific operation and compare it against the incremental capital expenditure of a higher redundancy tier.
Step 1: Calculate Your Cost Per Hour of Downtime
Estimate this by summing lost revenue, staff idle time, and recovery costs. For a financial trading desk, this figure can be in the hundreds of thousands of dollars per hour; for an internal corporate IT system, it might be a few thousand. Be honest about this number, it drives the entire calculation.
Step 2: Estimate the Annual Probability of a Power Event
Utility power in Australia's major metropolitan areas is generally reliable but not perfect. A reasonable planning assumption is at least one utility power interruption per year, ranging from a few seconds to several hours. The probability of a single UPS module failing in a given year is typically under 1% for modern systems, but the probability of a battery string failure is higher if maintenance is deferred.
Step 3: Compare the Cost of Failure vs. the Cost of Redundancy
N+1 might reduce the risk of a single UPS failure causing downtime to near zero, but it does not protect against a failure in the downstream distribution path. A 2N configuration adds a second independent power path, protecting against a much wider set of failure scenarios.
The incremental capital cost of moving from N+1 to 2N is often roughly double the UPS and switchgear cost, but it may only reduce the annual probability of a downtime event by a small fraction. If your cost of downtime is $50,000 per hour and the probability of a distribution-level failure is 0.5% per year, the expected annual loss is only $250. If the incremental cost of 2N is $500,000, the payback period is 2,000 years, a poor investment. If your cost of downtime is $1 million per hour, the expected annual loss is $5,000, and the payback period is 100 years, still not compelling unless the probability of failure is much higher.
Step 4: Factor in Operational Costs
A 2N architecture consumes more floor space, requires more cooling, demands more maintenance hours, and has a higher energy overhead. Calculate the total cost of ownership over a 10-year lifecycle, including capital, energy, maintenance, and staffing. This view often reveals that a well-maintained N+1 system is more cost-effective than a poorly maintained 2N system.
Implementing Data Centre Tier Standards AS 2834
In Australia, the design and construction of data centers are guided by the AS 2834 standard, which specifies requirements for computer room and data center accommodation. While this standard focuses on physical infrastructure, it intersects directly with power redundancy by mandating the electrical installations that support the IT load. Compliance demonstrates a commitment to safety and reliability increasingly expected in government and enterprise procurement. data center infrastructure.
Implementing these standards requires a structured commissioning process that verifies every component operates as designed under simulated failure conditions. Commissioning a micro data center, for example, ensures that power distribution units, cooling systems, and UPS modules are correctly integrated and configured for optimal performance before the facility goes live.
UPS Maintenance Best Practices and Alternatives to Standard Generator Maintenance

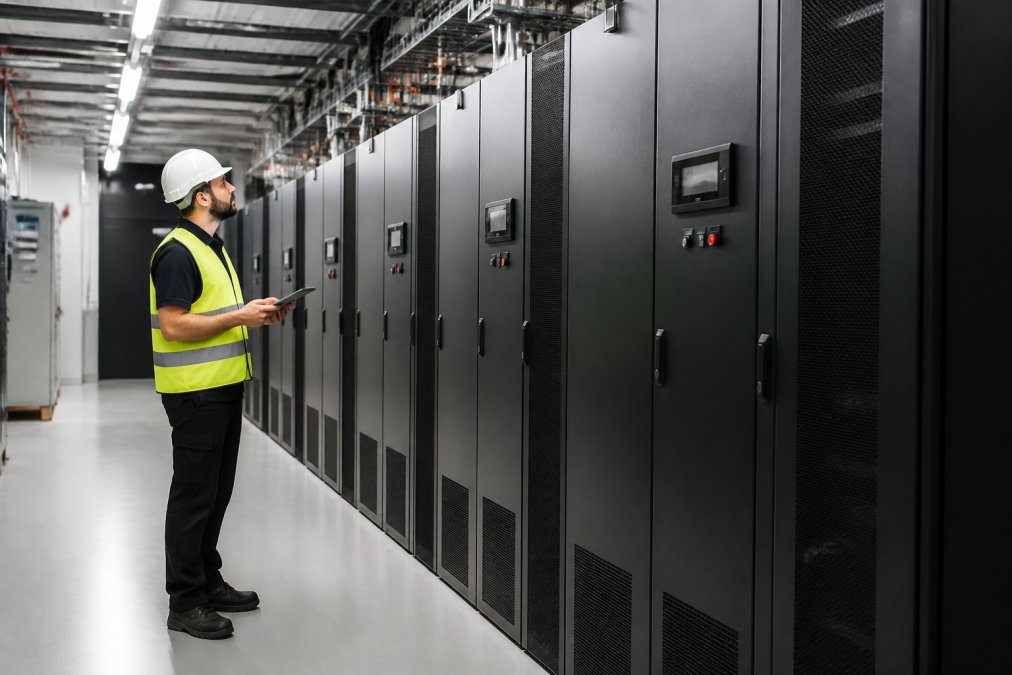

Power redundancy is only as reliable as your maintenance regime. A UPS that has not been tested is a liability, not a safeguard. This section offers a practical testing and maintenance checklist you can adapt to your facility, alongside alternatives to standard generator servicing that reduce downtime.
A Quarterly Redundant Power Path Testing Checklist
The goal of maintenance is to prove the entire redundant path functions under simulated failure. A common pattern in facilities that experience unexpected outages is that individual components pass their own tests, but the integrated switchover sequence fails. Adopt a structured quarterly protocol that exercises the whole chain.
- Visual and Thermal Inspection: Inspect all UPS modules, switchgear, and distribution boards for signs of overheating, loose connections, or corrosion. Use an infrared thermographer to identify hot spots on busbars and cable terminations, a non-invasive way to spot failing connections before they cause a fault.
- Battery Impedance and Capacity Testing: Perform battery impedance testing on a sample of cells each quarter. A significant rise in impedance (typically over 25% from baseline) indicates a cell is nearing end of life. Once a year, conduct a full discharge test to verify the battery string can deliver its rated runtime. For VRLA batteries, this is critical as their failure mode is often sudden (batteryuniversity.com).
- ATS Transfer Test Under Load: Do not test an automatic transfer switch (ATS) with no load. Schedule a test where you transfer the live load from the primary UPS output to the bypass or secondary source. Verify the transfer time is within the UPS inverter's ride-through capability (typically under 10-20 milliseconds) and that there is no phase shift or power blip that could affect sensitive IT equipment.
- Generator Step-Load Test: The thing nobody tells you about generator testing is that a generator that starts perfectly under no load can still fail when asked to accept a full step load. Use a resistive load bank to apply a load in steps (e.g., 25%, 50%, 75%, 100%) and monitor voltage and frequency stability. A generator that cannot hold frequency within ±1% during a step-load change will cause your UPS to go to battery, potentially exhausting it before the generator stabilises.
- Full System Switchover Simulation: Once a year, simulate a complete utility failure. Switch off the mains supply and observe the automatic sequence: UPS goes to battery, generator starts, ATS transfers to generator, and UPS rectifiers accept generator power. Measure the total time from utility loss to stable generator power. Document any alarms or manual interventions required.
Alternatives to Standard Generator Maintenance
Alternatives to standard generator maintenance reduce downtime and improve reliability. Continuous load testing and portable load banks allow you to exercise generators under real conditions without relying on a facility outage. A resistive load bank test applies a true electrical load that tests the alternator and voltage regulator, not just the engine.
For facilities with multiple generators, implement a rotating test schedule where each generator is tested under load for a minimum of one hour per month. This 'wet stacking prevention' approach ensures the engine reaches full operating temperature and burns off fuel condensation, a leading cause of generator failure when they are only run under no-load conditions.
Designing for Sustainability and Edge Data Centers
Redundancy and sustainability are often seen as competing priorities, but a well-designed power redundancy strategy can serve both. High-efficiency UPS systems operating in eco-mode or double-conversion mode reduce energy waste, while intelligent monitoring software identifies underutilised capacity that can be consolidated.
Software platforms like APC by Schneider Electric's EcoStruxure IT and EkkoSense's EkkoSoft Critical provide real-time visibility into power consumption and thermal conditions. This data enables predictive maintenance and helps you optimise cooling energy, lowering operational costs and your carbon footprint simultaneously.
Edge data centers are often deployed in remote or space-constrained locations where a full 2N architecture is impractical. For edge sites, a modular UPS with N+1 internal redundancy, combined with a rack-level ATS, offers a pragmatic balance of resilience and footprint. The Vertiv Single POD with maintenance bypass is an example of a compact solution that integrates power distribution and bypass functionality into a single unit.
Conclusion
Designing and maintaining data center power redundancy solutions demands a clear-eyed assessment of your risk tolerance, a disciplined approach to tier classification, and a commitment to ongoing testing.
At Treske Pty Limited, we help organisations across Australia and New Zealand navigate these decisions with an agnostic approach to technology. We design, supply, and install power, cooling, and rack systems tailored to your operational needs, and we stay with you through commissioning, maintenance, and optimisation. Our partnerships with technology leaders like Eaton, Vertiv, and Centiel ensure you receive the most effective and sustainable solution for your facility.
Get started with Treske Pty Limited and build a power redundancy strategy that delivers uninterrupted operation, even when the grid does not.
Frequently Asked Questions
What is the difference between N, N+1, and 2N power redundancy?
N refers to the minimum number of UPS modules or power components needed to support your critical load. N+1 adds one extra independent module to provide failover if a primary unit fails, allowing for maintenance without downtime. 2N provides two completely independent power paths, each capable of supporting the full load, offering the highest fault tolerance. Choosing between them depends on your required uptime, budget, and tier classification. N+1 is standard for many facilities, while 2N is often used for the most critical workloads.
What are the key maintenance best practices for a UPS system?
Regular UPS maintenance should include visual inspections for warning signs, testing battery health and capacity, and checking ventilation and temperature. Schedule load bank testing to verify the system performs under real-world conditions. Always follow the manufacturer's recommended service intervals and keep a log of all tests and findings. Using a maintenance bypass switch is critical, as it allows you to isolate the UPS for servicing without powering down connected equipment. Professional annual inspections are recommended to ensure all components are functioning correctly.
What are some alternatives to standard generator maintenance for data centers?
Alternatives to standard generator maintenance include condition-based monitoring using sensors and software to track performance and predict failures. Regular load bank testing under controlled conditions is a more effective method than simple visual checks. Consider using modular UPS systems to provide backup power while generators are serviced, reducing the need for a full shutdown. Partnering with a specialist for comprehensive maintenance programs that include thermal imaging and fluid analysis can also extend the life of your generator and improve reliability.
How does AS 2834 relate to data centre power redundancy?
AS 2834 is an Australian Standard for computer accommodations, providing guidelines for the design and installation of data centres. It outlines essential requirements for electrical supply and distribution, including recommendations for redundancy to ensure uninterrupted operation. Following AS 2834 helps facility managers align their power architecture with local best practices. It covers aspects from UPS selection to cabling and earthing, ensuring a safe and reliable environment. Compliance with this standard is a key factor in achieving a robust tier classification for your facility.
