Rack Mount Rack Types: Wall-Mount, Floor-Standing and Open-Frame Compared
Choosing the right rack mount rack starts with one question: where will it live, and what has to fit inside it?
Get the type wrong and everything downstream suffers. You fight for airflow. You run out of depth.
Here is how the three designs compare.
Wall-mount racks bolt to a wall and suit small footprints: comms rooms, retail back offices, clinics.
Floor-standing cabinets sit on the floor and carry the heavy end of the range. Our Rittal FR-IT Series Server Racks handle a 1500 kg static load, which suits dense server and power deployments.
Open-frame racks skip the enclosure entirely. Our 4-Post Open Racks give open-air housing for networking gear and cabling, with adjustable depth.
| Design | Best For | Load Capacity | Depth Range |
|---|---|---|---|
| Wall-mount | Comms rooms, small sites | Light to moderate | Shallow, up to ~760mm |
| Floor-standing | Data centres, dense deployments | Heavy, up to 1500 kg | Full depth |
| Open-frame | Network and cable distribution | Moderate | Adjustable |
Rack Dimensions and Rack Unit Sizing Explained
A standard rack is a frame width of 482.6mm between mounting rails, with equipment heights measured in rack units.
Sizing starts with three numbers.
- Width: almost always 482.6mm for standard IT gear. Some network hardware uses wider frames, so check before ordering.
- Height: measured in U. A 6U cabinet gives you six stacked units. An 18RU or 45RU open rack gives far more room.
- Depth: this is where most people get caught. A shallow wall cabinet cannot hold a deep server.
Add up the U height of everything going in, then add spare capacity.
Depth matters just as much. Measure the deepest item you plan to install, then add clearance for cables at the back.
Our APC NetShelter WX 9U Wall Mountable Rack Cabinet is 329mm deep, which suits network switches and patch panels rather than deep servers.
Legacy Data Centre Equipment Compatibility: Making Older Hardware Fit
Legacy data centre equipment compatibility comes down to four checks: rail spacing, depth, mounting hole type and power draw.
Run these checks before you buy.
- Rail spacing: confirm the cabinet's rails adjust to your server's mounting points. Standard frames have a fixed 482.6mm opening between rails, but the front-to-back rail position is adjustable on most floor-standing and open-frame designs. Measure the distance between your server's front and rear mounting flanges, then confirm the cabinet's rail adjustment range covers it. A server needing 800mm of rail travel will not fit a cabinet that only adjusts to 700mm.
- Depth: measure the server front to back, including cable clearance. Add at least 75mm behind the rear rail for power cords and network cables to bend without strain, and another 50mm in front if you plan to fit a door. A 700mm-deep server in a 1000mm cabinet leaves 300mm of usable space, enough for rear cabling but tight if you also need a PDU mounted vertically at the back.
- Hole type: older gear may use round holes where newer rails expect square, or the reverse. The common standards are square holes (most common in modern cabinets), round holes (older telecom and some HP and Dell equipment) and threaded holes (older Compaq and IBM gear). Cage nuts fit square holes; clip nuts fit round holes. If your rails came with one type and your cabinet has another, you need adapters or replacement rails, check before the cabinet arrives, not after.
A mixed estate is normal. Many sites run legacy servers beside newer switches and a UPS, all in one frame.
An agnostic approach helps here. Rather than forcing old gear into a new standard, match the enclosure to what you actually run.
If you are planning a migration, our guidance on IT asset and system migration is a useful reference for documenting what you have before you move it.
Rack Cabinet Cooling, Airflow and Power Planning
Rack cabinet cooling fails when airflow is blocked, not when fans are too small.
Plan cooling and power together. They are the same problem.
- Airflow: keep front intakes clear and route cables so they do not block the path.
- Perforation: doors with high perforation let more air through. Our Rittal FR-IT rack uses 75% door perforation to cut hot spots.
- Ventilation: a replaceable dust filter and integrated fans suit dusty or light industrial sites, as on the APC NetShelter WX 6U.
- Power: size UPS capacity to the full load, not just today's draw.
Overheating shortens equipment life and causes outages. A rack packed tight with no airflow will run hot even in a cool room.
For power, plan for growth. Where power and cooling meet, that is where Uptime Institute data centre resilience research is worth reading before you commit to a design.
Rack Mounting Accessories, Cable Management and Installation
Rack mounting accessories turn a frame into a working system. Cage nuts, mounting brackets, shelves, cable managers and PDUs are the parts that hold everything together and keep it serviceable.
APC Netshelter WX 6U Low-Profile Enclosure 230V - Wall Mount or Standalone →

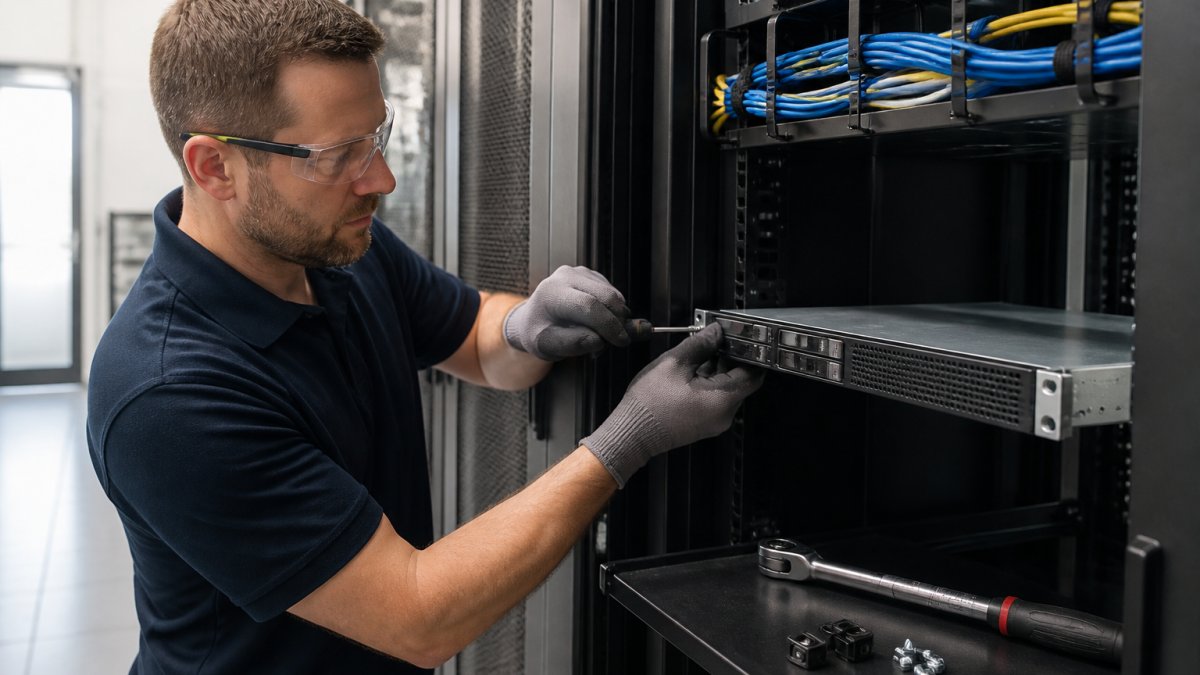

Install in this order:
- Fix the rack to wall or floor and check it is level.
- Fit shelves and cable managers before loading gear.
- Mount the heaviest items low to keep the centre of gravity down.
- Use cage nuts and the correct screws for each device.
- Route cables through managers, leaving slack for service.
- Label both ends of every cable.
- Test power and airflow before closing the doors.
Cable management is not cosmetic. Poor routing blocks airflow and makes faults slow to trace. Good routing means you can pull one cable without disturbing ten others.
For larger rollouts, our Rack and Stack service covers mounting and cabling on site, so the rack arrives ready to run.
Load Capacity, Weight Ratings and Future Capacity Planning
Maximum load is the number people skip, and it is the one that causes failures. Every rack has a weight rating, and exceeding it risks collapse, especially on wall mounts. The practical skill is not reading the rating, it is calculating what you are actually asking the rack to hold.
Check three figures:
- Static load: what the rack holds when stationary. Our Rittal FR-IT rack rates at 1500 kg. That figure assumes the load is distributed evenly across the frame, not concentrated on one shelf.
- Wall load: wall-mount cabinets carry far less. The APC NetShelter WX 6U supports up to 113 kg total. That rating assumes a sound wall; plasterboard on timber studs will not hold it. A wall rack loaded to its rating pulls constantly on its fixings, and the wall, not the rack, is usually the weak point.
- Point load: concentrated weight on one shelf or rail can fail before the total rating does. A 30kg UPS on a single shelf puts more stress on that shelf and its mounting points than the same 30kg spread across four 1U servers.
How to calculate your actual load
Add up the loaded weight of every item going in, not the shipping weight and not the empty chassis weight.
A worked example for a small comms room:
| Item | Quantity | Loaded weight each | Total |
|---|---|---|---|
| 1U network switch | 3 | ~4 kg | 12 kg |
| 2U server with drives | 1 | ~25 kg | 25 kg |
| 1U UPS | 1 | ~15 kg | 15 kg |
| 1U patch panel | 2 | ~2 kg | 4 kg |
| Shelves, managers, PDUs | ~8 kg | ||
| Total | ~64 kg |
That fits comfortably inside a 113 kg wall cabinet, but only if the wall is sound and the load is spread. Add a second 2U server and you are at 89 kg, which is close enough to the rating that point loading on one shelf becomes a real risk.
Planning for future capacity
Gear gets denser and heavier. A rack at its limit today has no room for tomorrow.
We recommend leaving at least a quarter of your U height free and keeping load well under the maximum. That headroom covers upgrades and keeps airflow open. In practice, that means if your current gear fills 12U and weighs 60kg, buy an 18U cabinet rated well above 80kg rather than a 12U cabinet rated at 65kg.
Two other planning points worth building in:
- Power headroom: a UPS sized to today's draw leaves nothing for the next server. Size the UPS to the full rack load plus at least 25% growth.
- Cooling headroom: more equipment in the same frame means more heat in the same volume. If you are planning to fill spare U later, plan the airflow now, do not wait until the rack runs hot.
For ongoing confidence, Preventative Maintenance checks load, cooling and power before small issues become outages.
Rack Mount Rack Selection Checklist and Conclusion
Use this checklist before you order any rack mount rack.
- Confirm the design: wall-mount, floor-standing or open-frame
- Add up total U height and leave spare capacity
- Measure the deepest device and add cable clearance
- Check rail spacing and mounting hole type for legacy gear
The rack is the foundation everything else sits on. Get the type, size and load right, and the rest of the build falls into place.
Treske Pty Limited designs, supplies and installs power, cooling and rack enclosure systems, with an agnostic approach that matches the enclosure to your equipment rather than the other way around. From Relocation Services to Site Acceptance Testing, we support the full life of a critical facility.
Visit us today to plan your next rack deployment.
Frequently Asked Questions
What is a rack mount rack?
A rack mount rack is a frame or enclosure that holds IT, network and AV equipment in a standard 482.6mm width. Equipment is fixed with brackets to the front rails, and height is measured in rack units (1U = 44.45mm). Common forms include wall-mount cabinets, floor-standing cabinets and open-frame racks. Wall-mount suits small switches and patch panels, floor-standing suits servers and UPS systems, and open-frame suits comms rooms where airflow and low cost matter more than physical security.
How do I choose the right rack mount rack?
Start with the equipment list and note each item's U height, depth and weight. Add up the U heights, then allow at least 20 percent spare capacity for future gear. Check the deepest device; a cabinet needs internal depth greater than that plus cable bend radius. Confirm the floor or wall can carry the maximum load, and that you have power and cooling to match. For mixed legacy and new hardware, choose adjustable mounting rails and a depth range that covers both.
What does 482.6mm rack mounting mean?
The 482.6mm figure refers to the distance between the vertical mounting rails, not the cabinet width. Equipment panels are 482.6mm wide, and the front panel holes align with the EIA-310 hole pattern. Rack unit height is standardised at 44.45mm, so a 2U device occupies 88.9mm of vertical space. This standard is why switches, servers, patch panels and UPS units from different makers can share the same rails when they follow the 482.6mm form factor.
How do I check whether legacy equipment will fit a rack?
Measure the legacy device's width, depth and height in millimetres, then compare against the rack's internal dimensions. Width should be 482.6mm at the mounting flanges; anything wider needs a shelf or conversion kit. Depth is the usual problem: older servers and telecom gear can exceed 800mm, so check the rack's adjustable depth range and rail travel. Confirm the device's mounting hole pattern matches the rack's rails, and verify the rack's load capacity covers the total weight of all installed equipment.
