Why an Environmental Monitoring Probe Belongs in Every Rack
Heat is the quietest threat in any equipment room. An environmental monitoring probe tracks temperature and humidity inside a rack enclosure and reports those readings to a management platform, so problems surface before hardware fails.
Servers, UPS units and network gear all carry operating limits, and once rack intake air drifts past them, equipment either throttles or shuts down. Humidity matters just as much: dry air invites static discharge, while damp air risks condensation on circuit boards.
What an Environmental Monitoring Probe Measures and How It Connects
An environmental monitoring probe measures temperature and humidity at a fixed point inside a rack enclosure and sends those readings to a monitoring system for logging and alerts. Most units connect through a power distribution unit or a network card rather than a standalone network connection, keeping cabling simple and integrating environmental data with power data in one interface.
Temperature and Humidity Readings
Temperature and humidity are the two core measurements. Temperature tells you whether intake air sits within the manufacturer's operating range; humidity tells you whether the room is dry enough to generate static or damp enough to condense moisture.
Some probes add dry contact inputs for third-party sensors such as smoke detectors or tamper switches, which lets one device cover more than climate.
Connecting the Probe to a PDU or Network Card
The probe connects to a power distribution unit or a network card using the vendor's sensor port. It then appears in the management interface alongside power monitoring data, viewable through a web browser or SNMP platform.
That single-interface approach is why PDU-based monitoring is popular in dense racks. You already have the PDU; the probe simply extends what it reports.
Probe Options and Pricing for Rack Enclosures
Three probe types cover most rack deployments, and the choice comes down to what your existing management hardware supports and whether you need humidity as well as temperature.
| Probe | Measures | Connects To | Price |
|---|---|---|---|
| Eaton Temperature & Humidity Sensor (FLXTTH) | Temperature and humidity | Flex PDU G2 series | $38.26 |
| Vertiv Modular Temperature Device (SN-T) | Temperature | Vertiv Unity cards, IS-RDU101 | $124.00 |
| Vertiv Modular Temperature & Humidity Device (SN-TH) | Temperature and humidity | Vertiv Unity cards, IS-RDU101 | $219.00 |

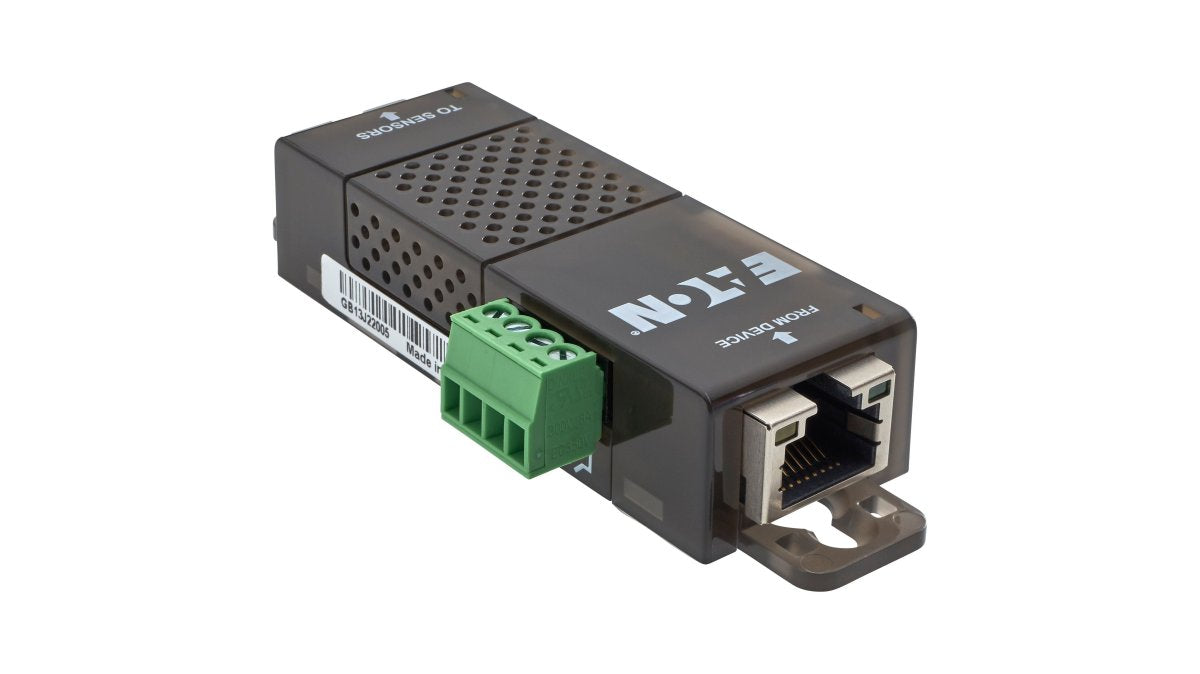

| Eaton Environmental Monitoring Probe for Gigabit Network Card | Temperature and humidity | Eaton Gigabit network card | $246.64 |
The Eaton FLXTTH is the cheapest entry point and the one Treske Pty Limited fits most often when a Flex PDU G2 is already in the rack.
The Vertiv SN-T suits sites standardised on Vertiv Unity cards that only need temperature.
The Eaton Gigabit probe is the pick where the network card is the monitoring hub.
Eaton environmental monitoring documentation
Server Room Temperature Monitoring: Placement and Accuracy
Server room temperature monitoring lives or dies on sensor placement. A probe mounted at the top of a rack reads exhaust air and will alarm constantly; the same probe at the cold aisle intake reads the air your equipment actually breathes.

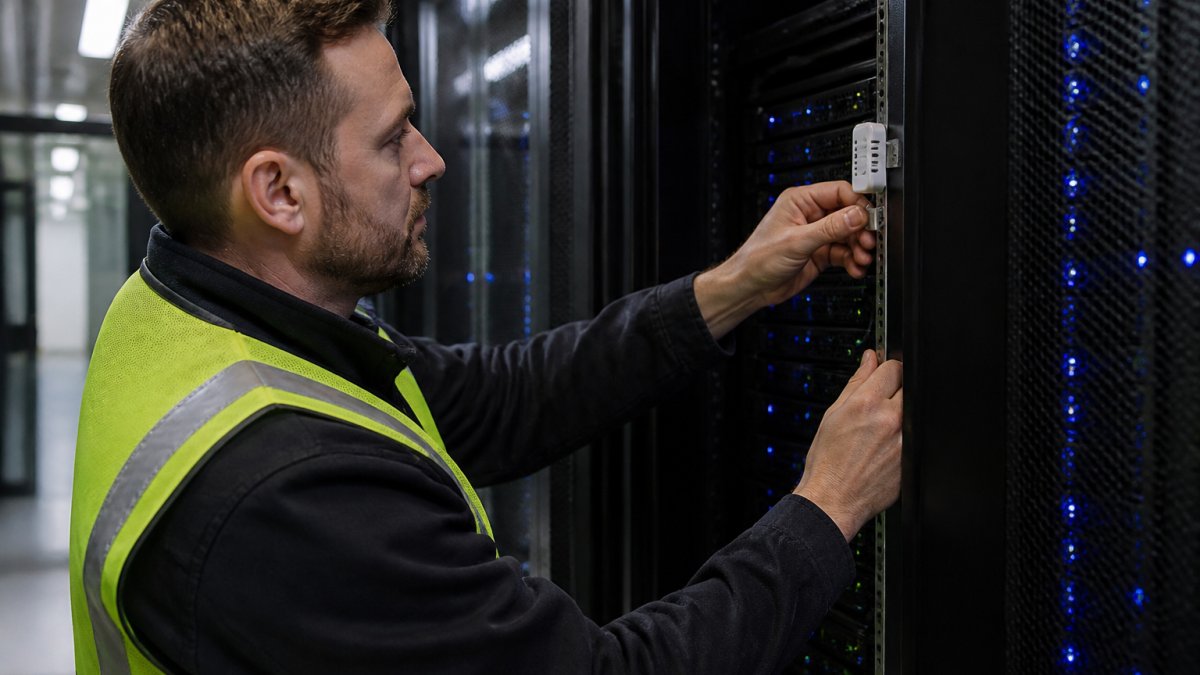

Where to Mount the Probe
Mount the probe at the front of the rack, at intake height, roughly one-third up from the bottom.
Avoid these placements:
- On top of the rack, where hot exhaust pools
- Behind the rack, in the return air path
- Near a door, vent or fan where readings swing with airflow
For a temperature and humidity probe, keep the sensor head clear of cable bundles. Air needs to move across it for the reading to mean anything.
A common mistake is fitting one probe per room. Racks run at different loads, so one can sit comfortably while the next one cooks.
Choosing a Temperature and Humidity Probe for Your Setup
Match the probe to the management hardware already in the rack. That rule eliminates most of the guesswork, because a probe that doesn't speak to your PDU or network card is dead weight.
Work through these questions before ordering:
- Does your PDU or network card have a spare sensor port?
- Do you need humidity, or temperature alone?
- Do you want dry contact inputs for smoke or tamper sensors?
- Is the sensor cable long enough to reach the intake position?
- Does the management platform support email or SNMP alerts?
If you are unsure what your existing hardware supports, that is worth checking before you buy. We handle rack and stack and installation work for sites that would rather have the compatibility confirmed first, and it saves a lot of returns.
Eaton Environmental Monitoring Probe for Gigabit Network Card →
PDU Environmental Monitoring Probe Compatibility Checklist
A PDU environmental monitoring probe only works when four things line up: the physical connector, the electrical signalling, the firmware generation, and the management platform's ability to interpret the readings. Most compatibility failures trace back to one of those four, and all four can be checked before you order. Ensuring this level of interoperability often requires integrating local control smart hubs to bridge the gap between disparate sensor hardware and centralized management systems.
The Four Compatibility Layers
1. Physical connector. Vendor sensor ports are not standardised.
2. Electrical signalling. Some ports carry proprietary one-wire or I²C-style signalling; others expect a simple resistance or voltage change.
3. Firmware generation. Network cards and PDUs recognise probes by an internal device table.
4. Platform interpretation. The management platform must map the probe's raw values to temperature and humidity readings and expose them to alerting.
Pre-Purchase Checklist
- Record the exact PDU or network card model number and firmware version
- Identify the sensor port type from the vendor datasheet (not a photo)
- Verify the management platform reads the probe as a named temperature and humidity sensor
Common Compatibility Traps
- Connector fits, signalling does not. The probe seats but reports nothing. This is a signalling mismatch, not a faulty probe.
- Card too old for the probe. The probe is invisible in the interface until the card firmware is updated. Budget ten minutes per card once you know about it.
- Platform shows the probe but not its alerts. The sensor enumerates but the alert rule was never created. Check the alert configuration, not the hardware.
Data Centre Environmental Monitoring: Alerts, Logging and Maintenance
Data centre environmental monitoring only delivers value if someone acts on the alerts. That means three things working together: thresholds set from observed normal, alerts routed to a place a human actually watches, and a response workflow that turns a notification into an action. Most sites get the first right and the second two wrong.
Setting Thresholds From Observed Normal
Do not set thresholds from the equipment datasheet alone. Log readings for at least a week, ideally across a full cooling cycle and a weekend, and establish the normal band for each rack. Then set:
- Warning at the upper edge of the observed normal band, so you get notice before conditions become abnormal
- Critical below the equipment's maximum operating temperature, with enough margin to act before shutdown
- Low humidity warning below the level where static discharge becomes a realistic risk
A common pattern is a warning at 27 °C and a critical at 30 °C for intake air, adjusted to the equipment's rated range. The exact numbers matter less than the principle: warning gives you time, critical demands action.
Routing Alerts to a Monitored Destination
An alert that lands in an unread inbox is not an alert. Route environmental alerts to the same on-call channel that handles power and network incidents, so they get the same urgency. Options include:
- Email to a monitored distribution list, not an individual
- SNMP traps into the existing network management system
- SMS or push notification for critical thresholds only, to avoid alert fatigue
Separate warning and critical routing. Warnings can go to a queue reviewed during business hours; criticals should reach someone within minutes, day or night.
A Worked Response Workflow
When a critical temperature alert fires, the response should be a known sequence:
- Acknowledge the alert so the escalation timer stops
- Check whether the reading is real, compare against a second probe or a handheld meter in the same aisle
- Identify the cause: cooling failure, blocked airflow, a door left open, or a failed sensor
- Act on the cause: restore cooling, clear the obstruction, close the door, or replace the sensor
- Verify the reading returns to normal and log the incident
- Review whether the threshold was set correctly, or whether the event revealed a gap
If no one acknowledges within the escalation window, the alert should escalate to a second contact automatically. That single rule catches the most common failure mode: an alert that fired correctly and was never seen.
Logging and Trend Review
Single readings tell you what is happening now. Logged data tells you what is changing. Review trends monthly for:
- Slow upward drift in intake temperature, which often precedes a cooling problem
- Seasonal humidity swings that may need threshold adjustment
- Racks running consistently hotter than their neighbours, which may indicate airflow or load imbalance
Maintenance and Troubleshooting
Maintenance is minimal but not zero. Check the sensor head for dust every few months, confirm readings against a handheld meter occasionally, and replace probes that drift or stop reporting.
Common faults and their causes:
- Probe stops reporting entirely. Check the connector is seated, the card firmware supports the probe, and the sensor port is enabled in the interface.
- Readings are implausible (for example, 0 °C in a warm room). Check for a signalling mismatch or a damaged cable.
- Readings are frozen. The sensor has likely failed. Replace the probe.
- Readings swing wildly. The probe is in an airflow path, near a door, vent or fan. Relocate it to the intake position.
We include environmental monitoring checks within our preventative maintenance programs, because a sensor that nobody verifies is a sensor nobody can trust.
Frequently Asked Questions
What does an environmental monitoring probe measure in a server room?
A probe measures temperature and humidity at the rack intake, and some models add airflow, water leakage or dry-contact inputs for smoke detectors and tamper switches. The Eaton Environmental Monitoring Probe for Gigabit Network Card reports temperature and humidity readings in real time, while the Vertiv SN-TH device covers temperature and humidity with two extra dry contact inputs. Placement matters as much as the sensor: readings taken at the front intake reflect what equipment actually breathes.
How does an environmental monitoring probe connect to a PDU or monitoring system?
Most probes plug into a network card or a PDU's connectivity port, then report over SNMP or Modbus to a web browser dashboard. The Eaton FLXTTH sensor is a hot-swappable connectivity device for Flex PDU G2 series units, and the Vertiv SN-T devices connect to Vertiv Unity cards and the IS-RDU101 card. Check the port type on your existing power distribution unit before buying, because a probe built for one card family will not fit another.
Where should environmental monitoring probes be placed in a data centre?
Mount probes at the cold aisle intake of the highest-density rack, not at the top rear of the enclosure where exhaust air skews readings. Add a second probe in a low-density rack to catch stratification, and keep sensors away from doorways, direct airflow from CRAC units and sunlight. In a rack enclosure, the middle of the front rail at roughly one-third height from the bottom gives the most representative temperature and humidity readings.
How often should environmental monitoring probes be calibrated?
Most manufacturers recommend annual verification against a reference instrument, with a visual inspection and reading comparison every six months. Humidity sensors drift faster than temperature sensors, so a probe that only reports temperature can stretch to 12 months while a combined temperature and humidity probe should be checked sooner. Log the results alongside your preventative maintenance schedule so drift is caught before it triggers false alerts or masks a real hot spot.
