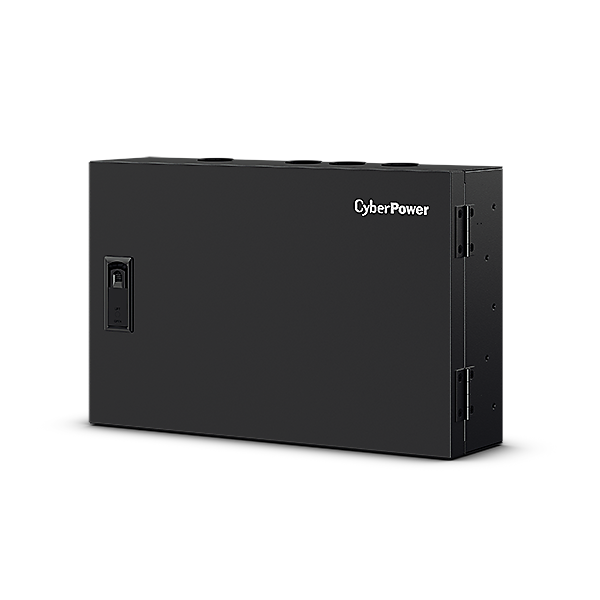

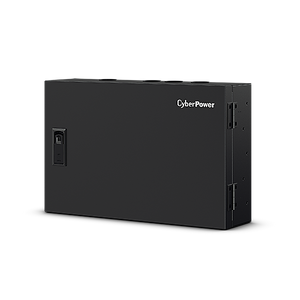

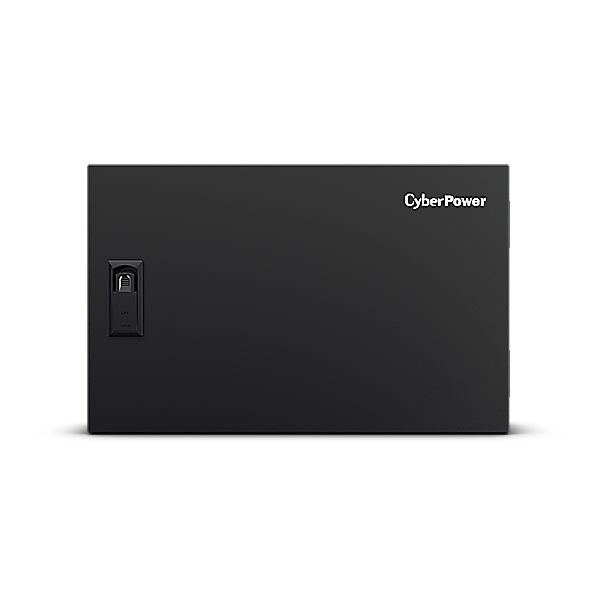

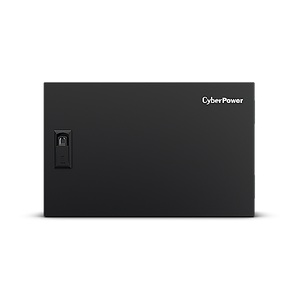

CyberPower Maintenance Bypass Switch (MBS63AHVHWW) Panel Mounted
CyberPower Maintenance Bypass Switch (MBS63AHVHWW) Panel Mounted is backordered and will ship as soon as it is back in stock.
Multiple Mounting Options
- Metal Housing
- Door Design to Improve Safety
CyberPower Maintenance Bypass Switch (MBS63AHVHWW) Panel Mounted
CyberPower Maintenance Bypass Switch (MBS63AHVHWW) Panel Mounted is backordered and will ship as soon as it is back in stock.
CyberPower MBS63AHVHWW Maintenance Bypass Switch
The CyberPower MBS63AHVHWW is a maintenance bypass solution designed for use with compatible UPS systems, providing a safe and convenient means of maintaining the UPS while keeping connected equipment powered.
During UPS maintenance or servicing, the maintenance bypass enables the connected load to be seamlessly transferred from the UPS to the utility supply, allowing the UPS to be isolated without interrupting power to critical equipment.
The MBS63AHVHWW supports flexible installation options to accommodate different application requirements, installation environments and site conditions.
- Maintenance Bypass: Enables UPS servicing while maintaining power to connected equipment
- Seamless Power Transfer: Transfers the load from the UPS to utility supply during maintenance
- UPS Isolation: Allows compatible UPS equipment to be isolated for servicing
- Flexible Installation: Supports different installation requirements and site conditions
- Power Continuity: Helps minimise disruption to critical connected equipment during UPS maintenance
| General | ||
| Product Type | Maintenance Bypass Switch | |
| Input | ||
| Input Voltage Range (Vac) | 380 ~ 415 | |
| Rated Input Current (A) | 63 | |
| Physical | ||
| Enclosure Construction | Metal | |
| Color | Black | |
| Installation | Horizontal Rackmount, Wall Mount | |
| Installation Attached to Rack/Tower UPSs | Yes | |
| Physical Size | ||
| Dimensions (WxHxD) (in.) | 17.3 x 11 x 4.3 | |
| Dimensions (WxHxD) (mm.) | 440 x 280 x 110 | |
| Weight (lbs.) | 15.7 | |
| Weight (kg.) | 7.1 | |
| Shipping Dimensions | ||
| Dimensions (WxHxD) (in.) | 22.4 x 8 x 14.2 | |
| Dimensions (WxHxD) (mm.) | 570 x 204 x 360 | |
| Weight (lbs.) | 19.2 | |
| Weight (kg.) | 8.7 | |
| Environmental | ||
| Operating Temperature (°C) | 0 ~ 40 | |
| Operating Relative Humidity (Non-condensing) (%) | 0 ~ 95 | |
| Operating Elevation (feet/meters) | ≤1000, Load Derated 1% per 100m from 1000m and 2000m | |
| Storage Temperature (°C) | -40 ~ 70 | |
| Certifications | ||
| Certifications | CE | |
| RoHS | Yes | |
| Warranty | ||
| Product Warranty Period (Year) | 2 | |
