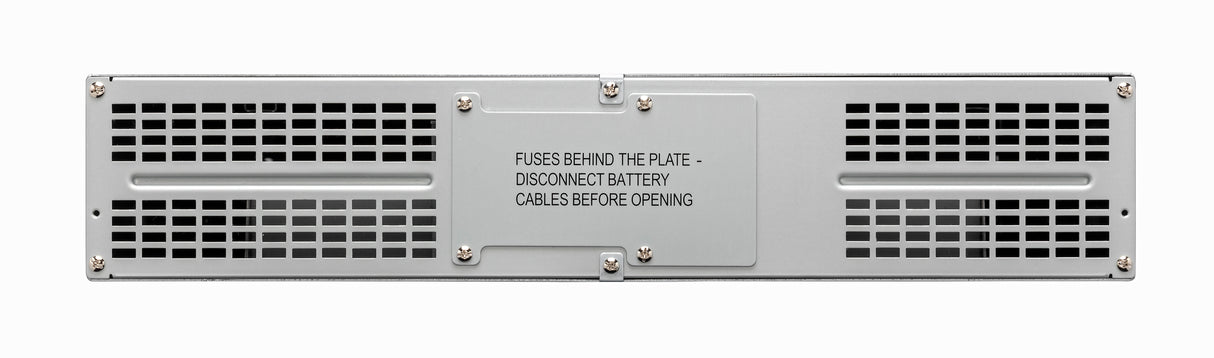

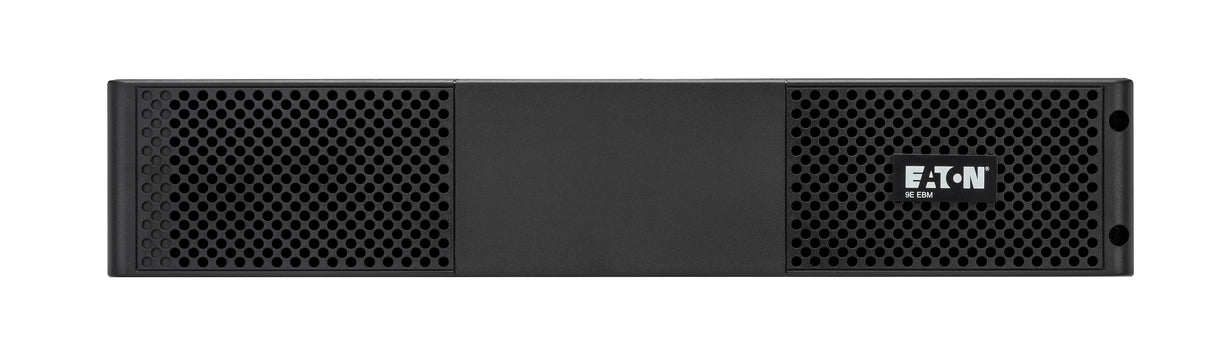

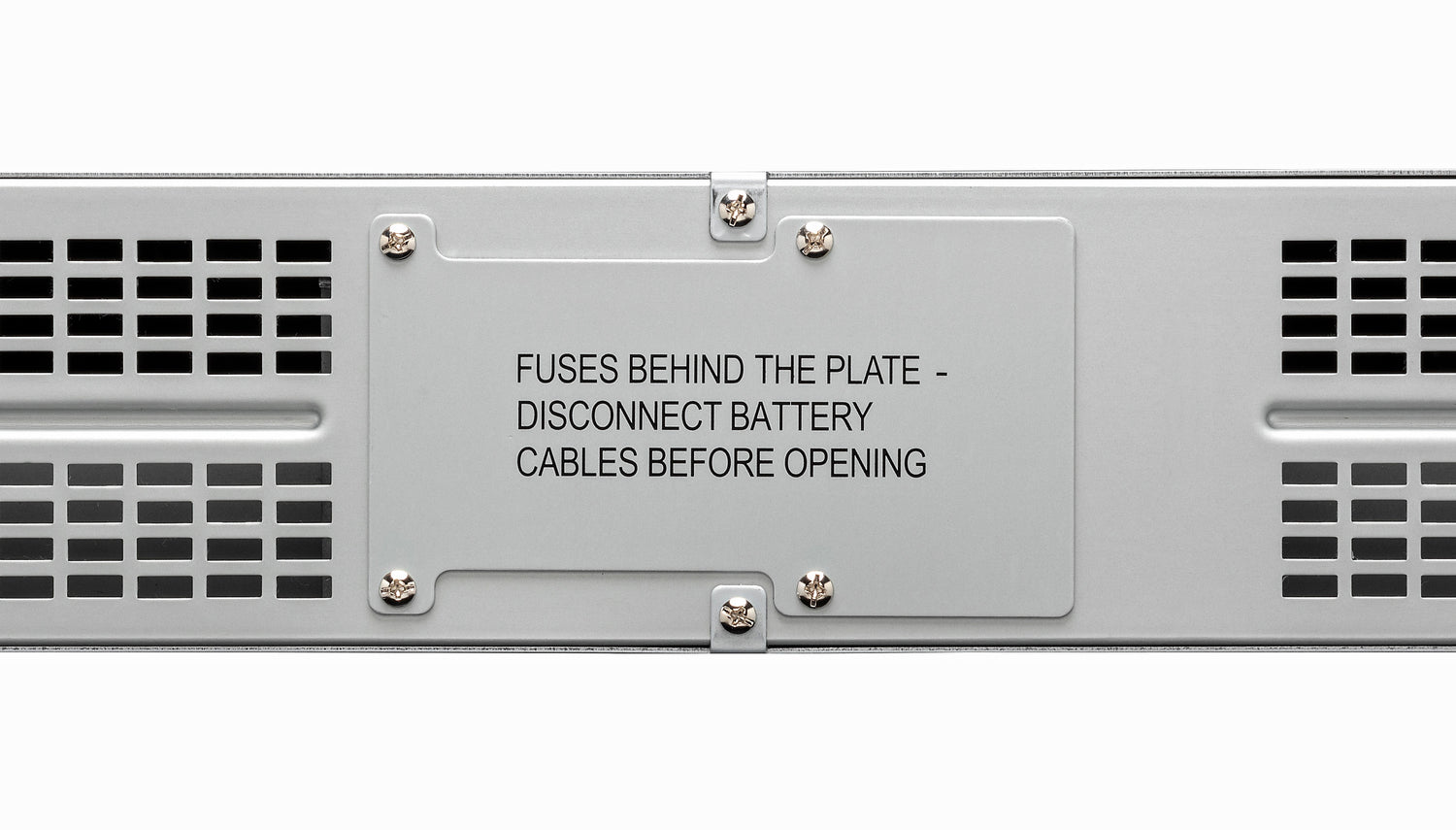

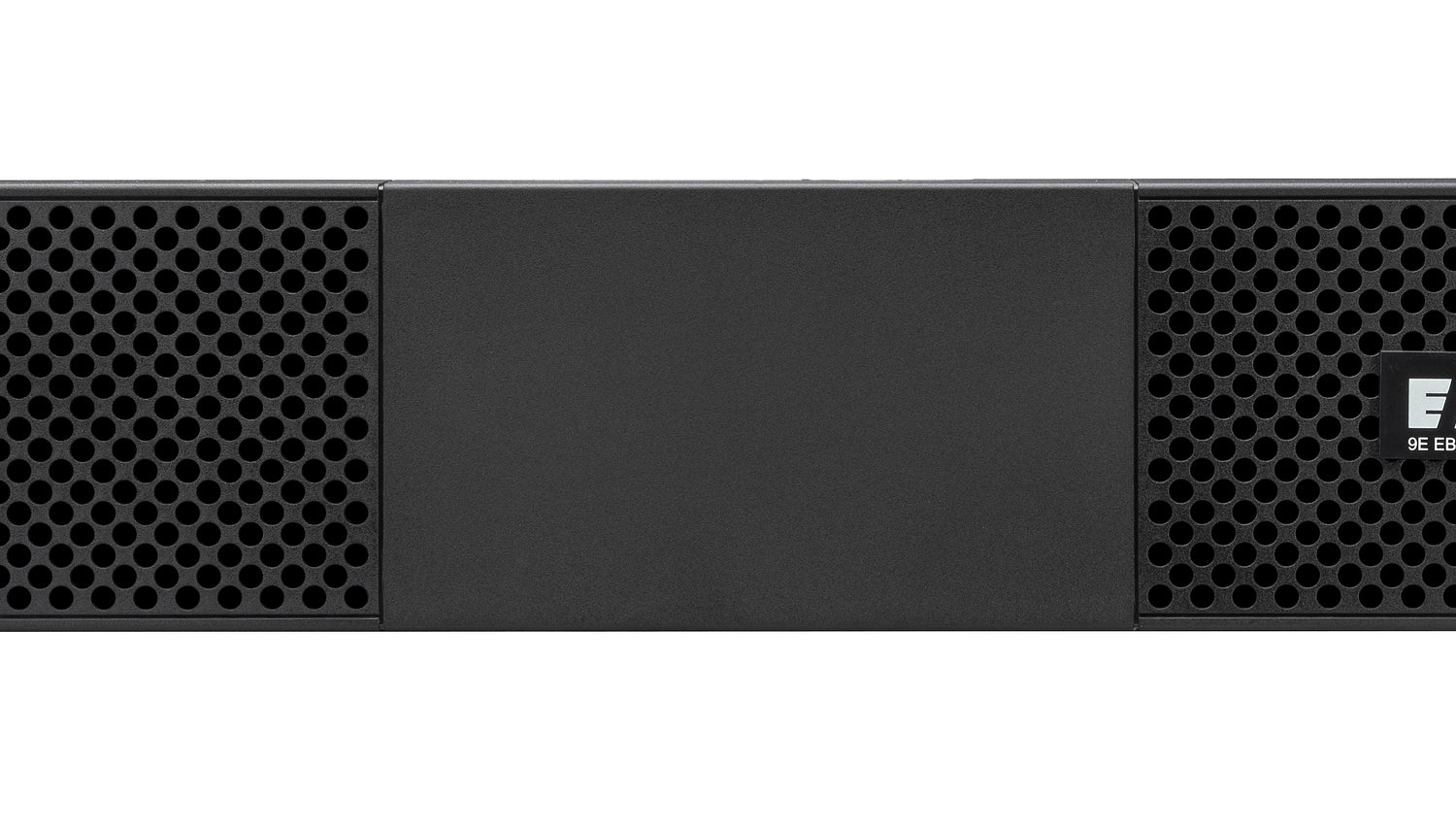

Eaton Extended battery cabinet 72VDC for Eaton 9E Rack UPS 1-3kVA

Eaton 9EEBM72R Extended Battery Module – Key Features

• Extended UPS Runtime – Provides additional battery capacity for longer backup times during mains power outages.

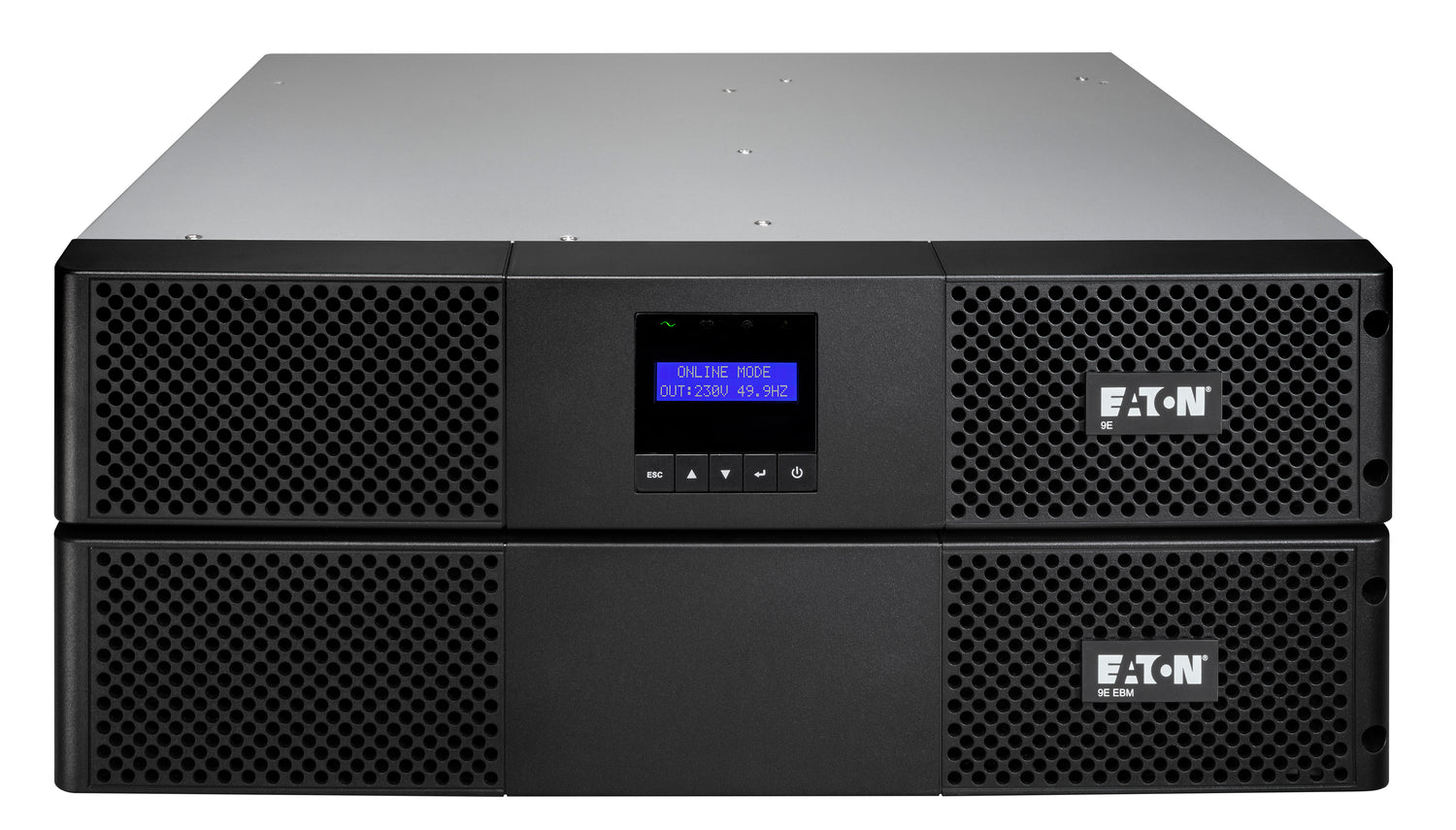

• Designed for Eaton 9E Rack UPS – Specifically compatible with the 9E2000IR and 9E3000IR rackmount UPS models.
• 72V Battery Module – Purpose-built external battery module for the Eaton 9E Rack platform.
• Compact 2U Rackmount Design – Fits standard 19-inch racks while requiring only 2U of rack space.
• Scalable Runtime – Supports connection of up to four EBMs, allowing backup time to be tailored to the application.
• 12 × 12V 9Ah Batteries – Uses sealed lead-acid batteries with replaceable battery capability.
• Rack Kit Included – Supplied with rails and mounting brackets for straightforward rack installation.
• Ideal for Critical IT Loads – Suitable for servers, network equipment, telecommunications and edge IT applications requiring extended backup time.
• Eaton Engineered Compatibility – Integrates directly with the 9E UPS battery management and charging system.

Key Benefit: Adds flexible, scalable battery runtime to Eaton 9E 2kVA and 3kVA rack UPS systems without changing the UPS itself.

Dimensions: 438(W) x 608(D) x 86.5(H)

Weight: 41.6kg
