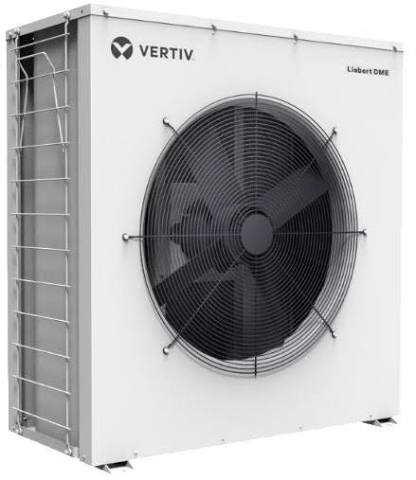

Vertiv Liebert Outdoor Air cooled Condensors for Liebert DM Series Cooling Unit | Ambient up to 35 DegC
Vertiv Liebert Outdoor Air cooled Condensors for Liebert DM Series Cooling Unit | Ambient up to 35 DegC - 7kw is backordered and will ship as soon as it is back in stock.
7kW Outdoor Unit
Vertiv Liebert DM 7kW, Condenser matching with DM12, Vertical Installation, 230V/1ph/50Hz
| Air Volume | 3,800 m³/h |
| Condenser Coil Surface Area | 0.7046 m² |
| Number of Condenser Coil Rows | 2 |
| Motor Power | 160 W |
| Operating Temperature Range | -15°C to 45°C (Standard Model) |
| Liquid Pipe OD | 9.72 mm |
| Discharge Pipe OD | 12.7 mm |
| Product Dimensions & Weight | 35.2 cm × 78.7 cm × 82.90 cm (H) @ 40 kg |
| Shipping Dimensions & Weight | 44 cm × 90 cm × 99 cm (H) @ 98 kg |
Vertiv Liebert Outdoor Air cooled Condensors for Liebert DM Series ...
From
$000 AUD
Unit price
Vertiv Liebert Outdoor Air cooled Condensors for Liebert DM Series Cooling Unit | Ambient up to 35 DegC - 7kw is backordered and will ship as soon as it is back in stock.
Vertiv Liebert DM – Matching Outdoor Condensers
The Vertiv™ Liebert® DM precision cooling range uses matching air-cooled DMC outdoor condensers designed to provide reliable heat rejection for continuous critical cooling applications.
| Liebert DM Indoor Unit | Matching Condenser | Air Volume | Coil Area | Coil Rows | Fan Motor | Liquid Pipe OD | Discharge Pipe OD |
|---|---|---|---|---|---|---|---|
| 7 kW | DMC07WA1 | 3,800 m³/h | 0.7046 m² | 2 | 160 W | 9.72 mm | 12.7 mm |
| 12 kW | DMC12WA1 | 6,800 m³/h | 1.705 m² | 2 | 320 W | 12.7 mm | 16 mm |
| 17 kW | DMC17WA1 | 8,200 m³/h | 1.38 m² | 2 | 450 W | 12.7 mm | 16 mm |
| 22 kW | DMC22MA1 | 10,000 m³/h | 1.77 m² | 3 | 480 W | 16 mm | 19 mm |
| 27 kW | DMC27MA1 | 12,500 m³/h | 2.07 m² | 3 | 500 W | 16 mm | 19 mm |
Condenser Features & Benefits
- Matched Precision Cooling – Purpose-designed outdoor condensers matched to the corresponding Liebert DM indoor precision cooling units.
- High Airflow Heat Rejection – Condenser airflow ranges from 3,800 m³/h to 12,500 m³/h across the range.
- Energy-Efficient Operation – Variable fan operation helps optimise condenser performance and energy consumption.
- Heavy-Duty Construction – Anti-corrosion design supports reliable outdoor operation in critical cooling applications.
- Compact & Low Noise – Designed for straightforward installation with compact dimensions, low weight and low operating noise.
- Wide Outdoor Operating Range – Supports operation from -15°C to 45°C as standard.
- Low-Temperature Option – Operating range can be extended down to -34°C with the optional low-temperature component.
