N+1 Power Architecture: The Verdict Up Front
Is N+1 power architecture worth it? For most enterprise and healthcare facilities running critical loads, yes. N+1 power architecture is a redundancy model in which one extra power module or UPS unit sits ready to take over if another fails, so a single fault never interrupts the load. This guide from Treske Pty Limited explains where the model earns its cost, where it doesn't, and how to decide between N+1 and 2N.
The trade-off is straightforward. You gain resilience against one failure; you pay for a module that does nothing on a normal day. Whether that's money well spent depends on what a minute of downtime costs your operation, not on the sticker price alone.
Below, we break down the advantages, the limits, how N+1 compares with 2N redundancy, and who should actually specify it.
N+1 Power Architecture Advantages and Disadvantages
The core advantage is single-fault tolerance without doubling your infrastructure. In an N+1 UPS configuration, the load is shared across multiple modules, and one spare module is held in reserve. If any single module fails, the remaining units carry the load while the failed module is swapped out, often hot-swappable on modern modular systems.
Advantages:
- Single-fault tolerance at lower cost than full duplication
- Modular growth: add capacity as demand rises
- Hot-swappable modules reduce repair time and service disruption
- Smaller footprint than a fully mirrored 2N design
Disadvantages:
- Only covers one failure at a time; concurrent faults are not protected
- Maintenance on the spare module still requires planning
- Poorly sized systems can leave the spare under-loaded and inefficient
- Does not protect against upstream faults in switchgear or cabling
N+1 vs 2N Redundancy: Which Level Do You Actually Need?
N+1 redundancy protects against a single failure, while 2N redundancy duplicates the entire power path so either side can carry the full load independently. The right level depends on how much concurrent-fault tolerance and maintenance flexibility you need.
| Criteria | N+1 | 2N |
|---|---|---|
| Faults covered | One at a time | Two independent paths |
| Cost | Lower | Significantly higher |
| Footprint | Smaller | Roughly double |
| Maintenance window | Requires care | Full path can be serviced live |
| Best for | Most critical rooms | Tier IV / mission-critical |
For a hospital data centre or a facility where maintenance must happen without any risk to the load, 2N is the safer specification. For most enterprise server rooms, N+1 delivers the resilience that matters at a fraction of the cost.

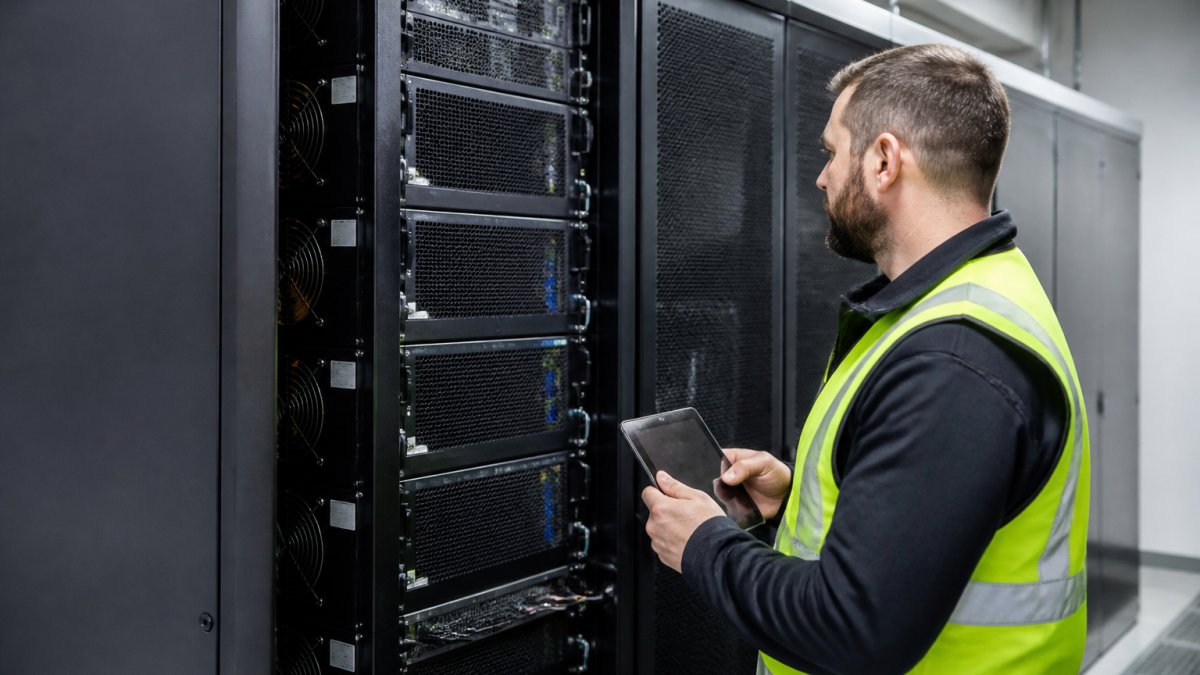

What an N+1 UPS Configuration Looks Like in Practice
In practice, an N+1 UPS configuration is a rack or tower unit holding several power modules, one of which is redundant, feeding your critical load through a shared output. The APC Symmetra LX, for example, uses a modular, redundant architecture that scales power and runtime as demand increases.
The Symmetra LX 8kVA Scalable to 16kVA N+1 Tower is configurable for internal N+1 redundancy, with automatic and manual bypass, SNMP management, and generator compatibility. For rack-constrained rooms, the Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount delivers the same redundancy in a 13U form factor. Smaller sites can start with the Symmetra RM 2kVA Scalable to 6kVA N+1, which packs redundancy and scalability into a single chassis.
N+1 Redundancy Cost: What You're Actually Paying For
N+1 redundancy cost is not just the price of the spare module. It is the module, the design work to size it correctly, the installation and commissioning, and the ongoing maintenance that keeps the spare genuinely available.
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V →
With Treske, the Symmetra LX 8kVA Scalable to 16kVA N+1 Tower is listed at $19,425.12, and the 8kVA Rack-mount at $20,695.40. The Symmetra RM 2kVA Scalable to 6kVA N+1 starts at $6,712.31. Those figures cover the equipment; sizing, installation, and commissioning are scoped separately because they depend on your site.
Who Should Choose N+1 Power Architecture (and Who Shouldn't)
Choose N+1 if you run a critical server room, a hospital data centre, or an edge facility where a single power module failure must not interrupt service, and where a full 2N build is either unaffordable or physically impossible.
Skip N+1 if your load is non-critical, if your uptime requirement genuinely demands concurrent-fault tolerance (that's 2N territory), or if your upstream power path has single points of failure you haven't addressed. In those cases, N+1 gives you a false sense of security.
For facilities that need the resilience but also want the design, supply, and installation handled by one team, Treske's agnostic approach means we specify the architecture that fits your operational needs rather than a fixed product line.
Conclusion
The challenge with N+1 power architecture is rarely the concept; it's the sizing, the upstream design, and the maintenance that keeps the spare module ready. Get those right and N+1 delivers single-fault tolerance at a cost most facilities can justify.
Treske Pty Limited designs, supplies, and installs critical power and cooling infrastructure, with an agnostic approach to technology, expert commissioning, and preventative maintenance that keeps your redundancy real. Visit us today to scope an N+1 design for your facility.
Frequently Asked Questions
What does N+1 mean in power architecture?
N+1 means you have the capacity needed to run your load (N) plus one extra module or unit (+1) that sits in reserve. If any single module fails or needs maintenance, the remaining units carry the full load without interruption. In an N+1 UPS configuration, this is typically achieved with modular units sharing the load, so one can be removed while the rest keep running.
How much extra capacity does N+1 redundancy require?
N+1 requires enough additional capacity to cover the loss of the largest single module. In a modular UPS, that might mean adding one 4 kVA module to a 12 kVA load, bringing total installed capacity to 16 kVA. The exact overhead depends on your module sizes and load profile. The key is that the remaining modules can handle 100% of the load if one drops out.
Is N+1 more reliable than N power architecture?
Yes. N power architecture has no spare capacity, so a single module failure takes down the load. N+1 power architecture includes one redundant module, so a single failure does not interrupt power. For facilities running 24/7 operations, that difference is often the line between a minor service event and a full outage.
When should a data centre use N+1 power architecture?
N+1 suits facilities where a single power module failure must not interrupt operations. That includes hospitals, pathology labs, managed service providers, and enterprise server rooms running critical applications. If your downtime cost per hour exceeds the cost of one extra module, N+1 power architecture is usually the right call.
Can N+1 power systems be maintained without downtime?
Yes, if the system uses hot-swappable modules. Modular UPS units like the APC Symmetra LX allow you to remove and replace power, battery, and intelligence modules while the system stays online. That means routine maintenance, battery replacement, and even module upgrades happen without shutting down connected equipment. Always confirm hot-swap capability before specifying a system.
